Adjust its height to your needs
Easily adjust working height by adding or removing mast sections for precise, fixed vertical anchorage.
Tested to 22 kN and compliant with ANSI, OSHA, CSA, and EN standards for reliable fall protection.
The rotating head design allows full circular movement, ensuring optimal alignment for lifting, lowering, and rescue operations.
Provides a certified, secure anchorage point for elevated work, combining stability, control, and compliance in every configuration.
The system supports a Working Load Limit (WLL) of 164 kg (360 lb) and achieves a minimum breaking strength (MBS) of 22 kN, compliant with EN 795:2012 (Type B), CEN/TS 16415 (2 persons), ANSI Z359.1, OSHA 1910.66, and CSA Z259.2.1 standards.
Designed for fall arrest, personnel positioning, and retrieval, the IN-8022 offers a certified anchorage point for up to two users while maintaining stability and ease of operation in demanding conditions.
The IN-8022 accommodates self-retracting lifelines (SRLs) and rescue winches, including the Xtirpa™ IN-2477 and other industry-standard devices.

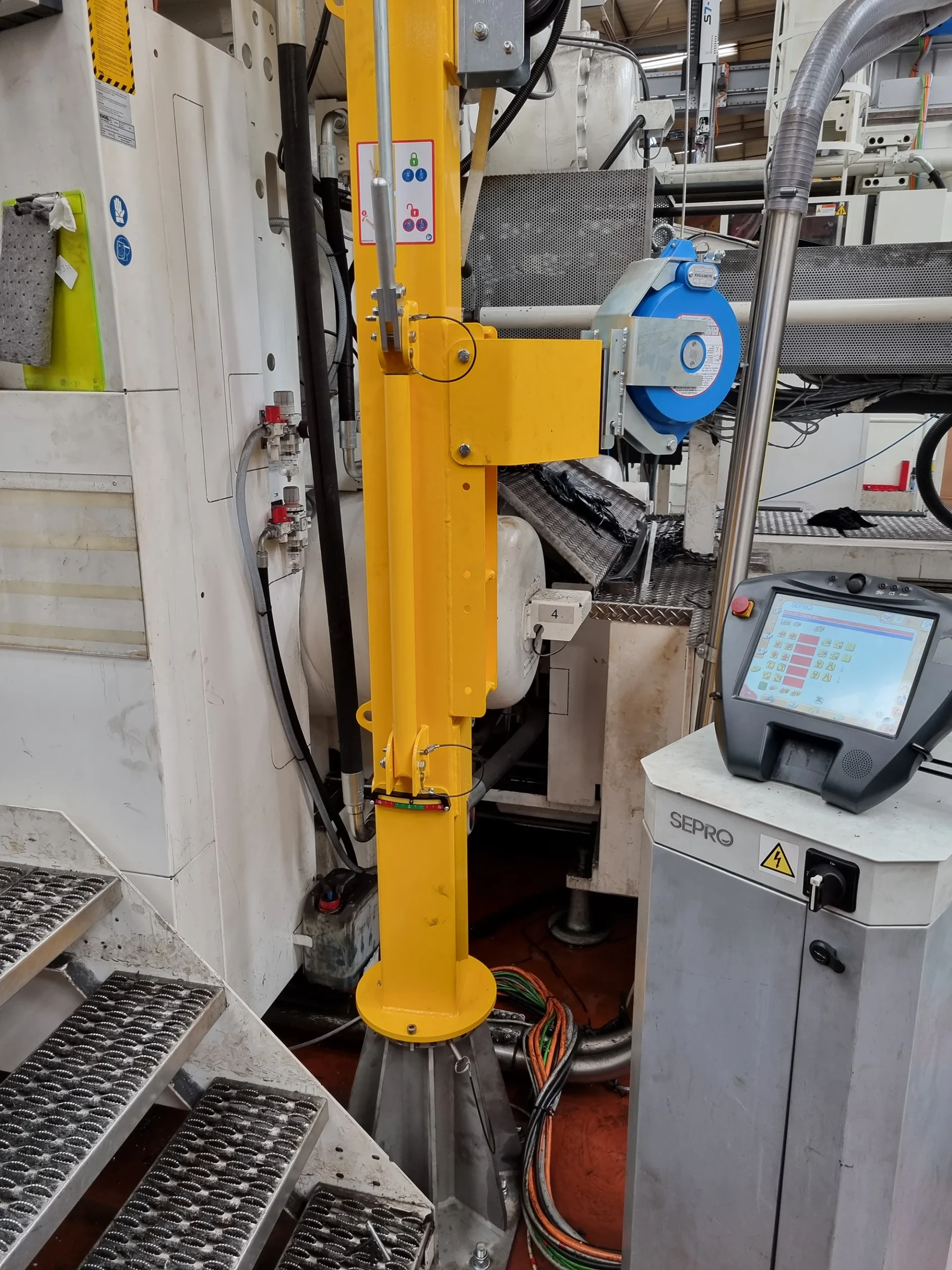

Adjustable mounting brackets allow operators to position SRLs or winches directly on the mast for smooth cable alignment, reduced friction, and efficient retrieval.
Unlike fixed-height systems, the IN-8022 offers precise vertical adjustment through a telescopic inner mast section.

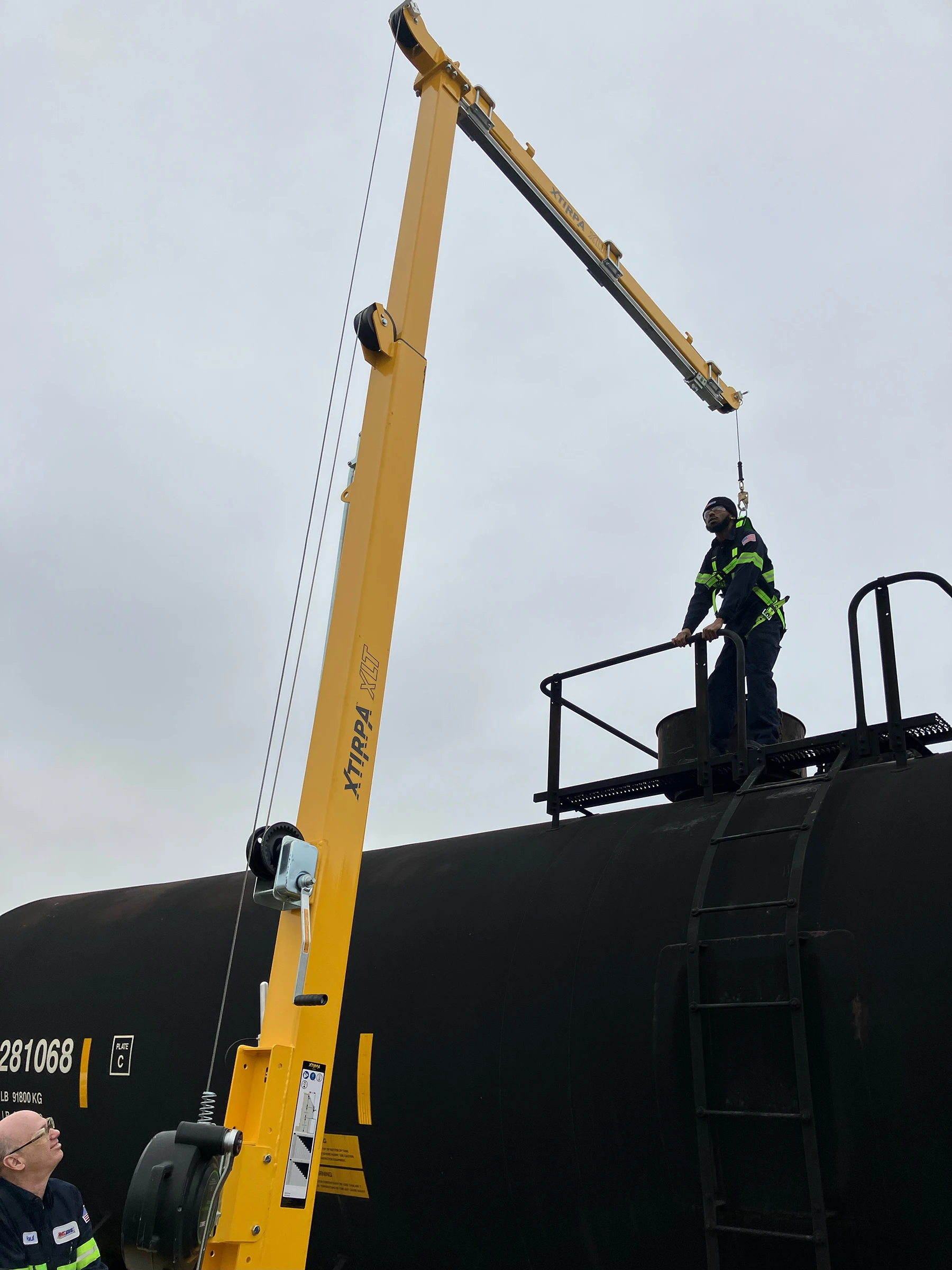

Height can be easily varied between 4 m and 7.4 m (13′ – 24′), adapting seamlessly to confined-space openings, overhead structures, or tank entry points.
Locking pins with spring-retention mechanisms ensure secure and tool-free height setting, maintaining full system rigidity and user confidence.
The IN-8022’s modular design enables fast assembly thanks to its lifting tool.
Its anodized aluminum finish provides excellent corrosion resistance, extending service life even in harsh or humid environments.

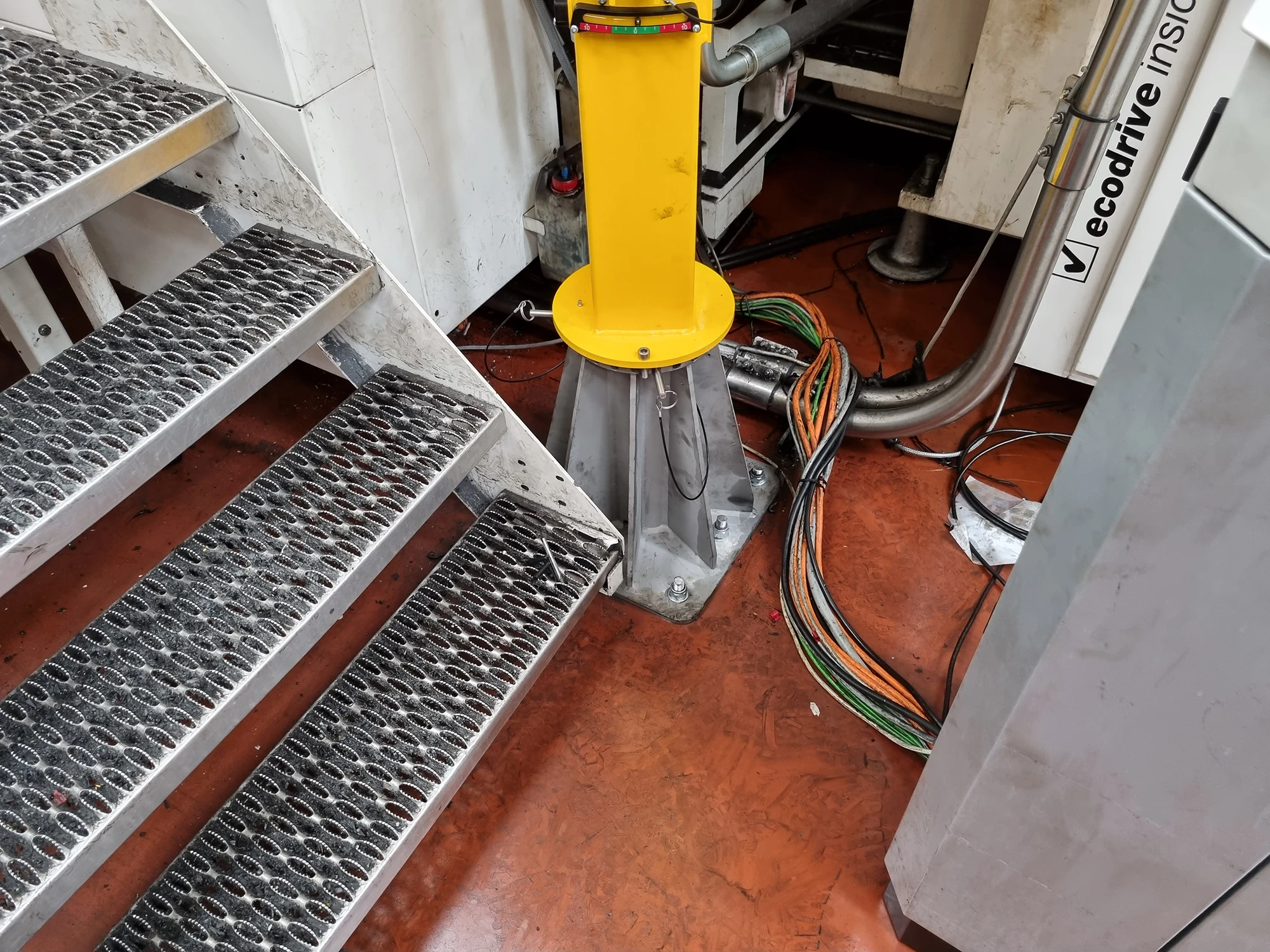

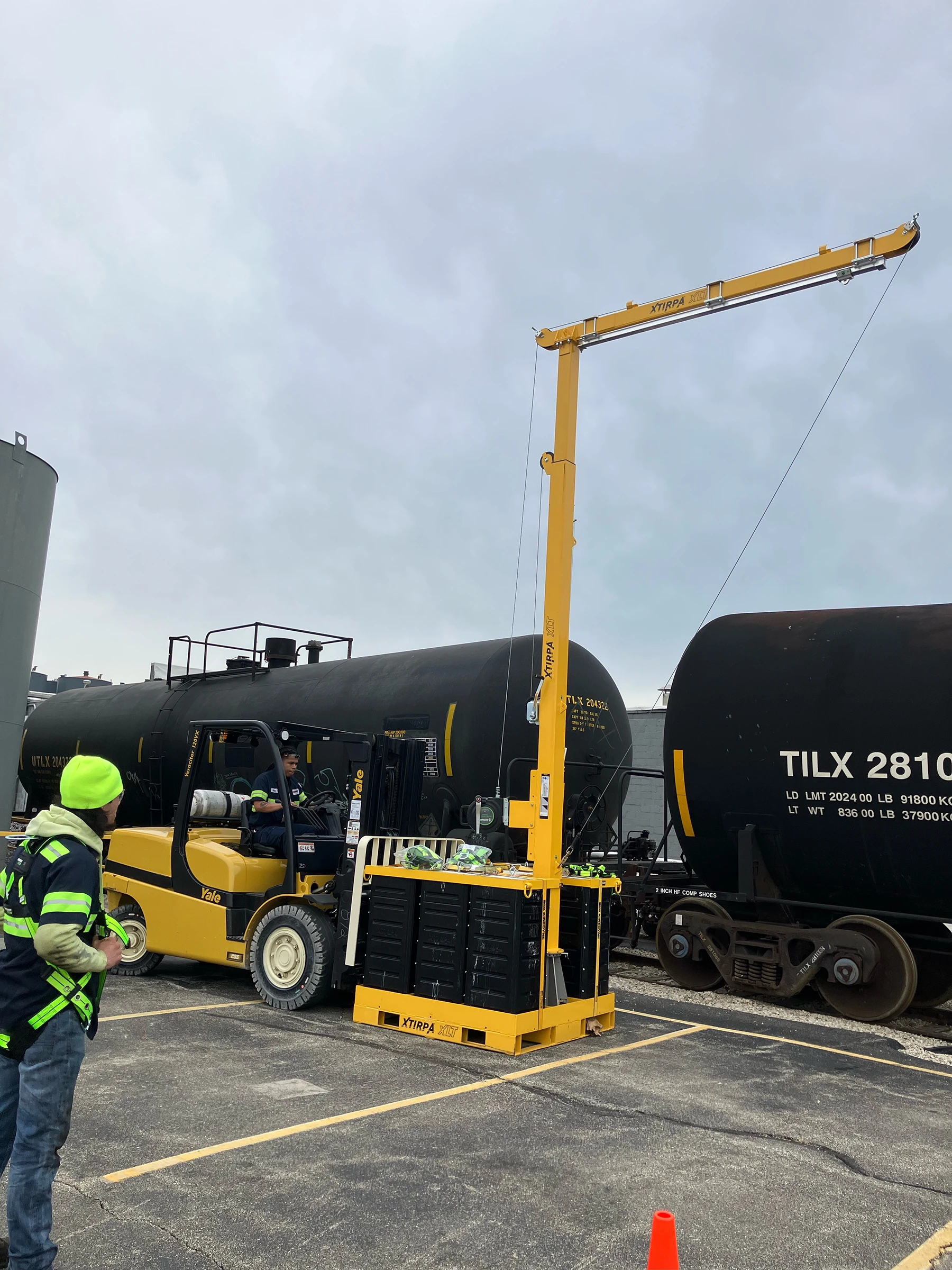

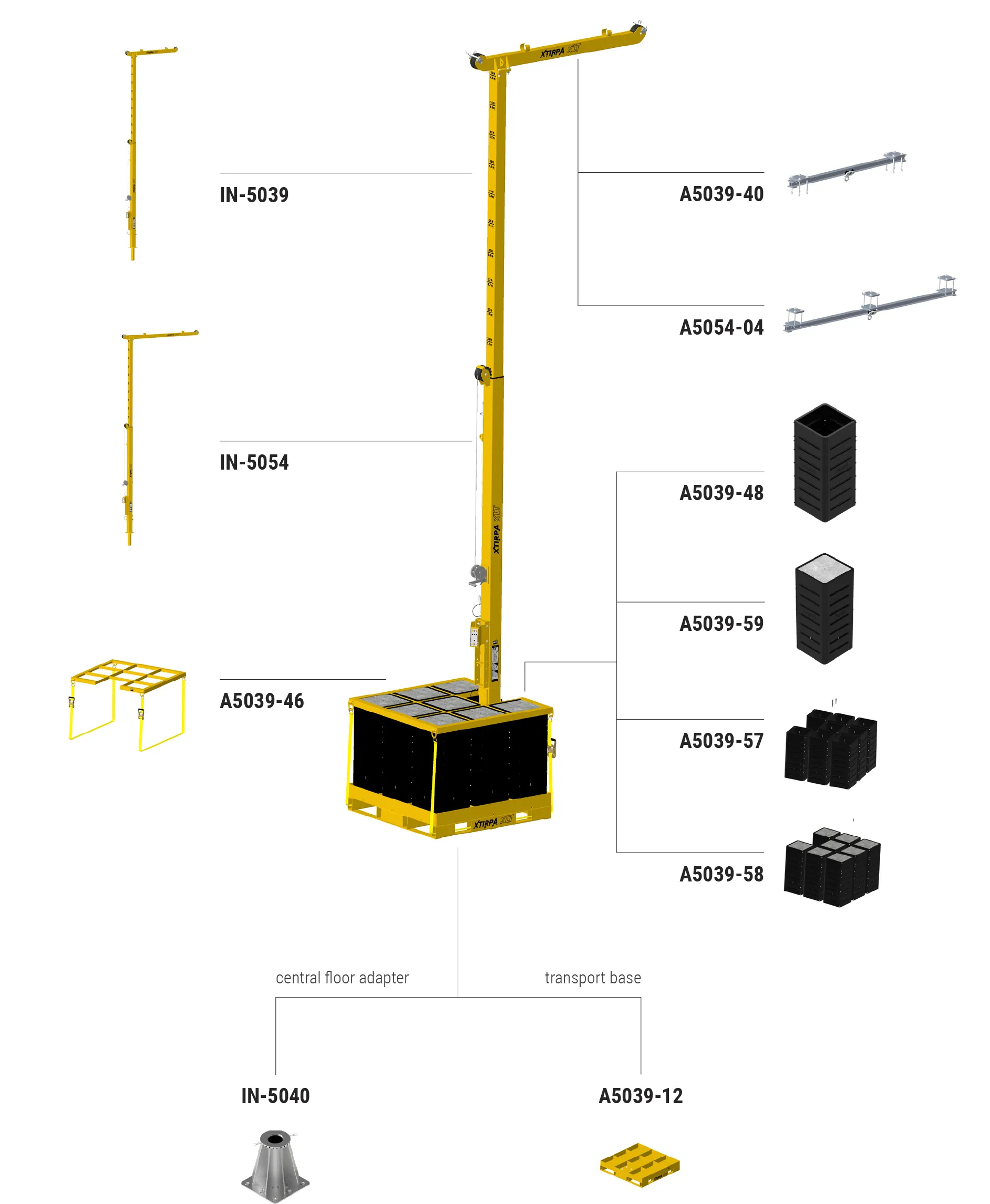

Fully compatible with the Xtirpa™ modular ecosystem, the IN-8022 integrates with a center floor base that can be adapted to a counterweight system or with a cast in place base.
This modular interoperability ensures that users can configure the system to match evolving site requirements while maintaining full regulatory compliance.
Precision-built for dynamic worksites — adjustable height, certified safety, and the trusted engineering of Xtirpa™.
Standarsds
ANSI Z359.18 Type D
AS/NZS 5532 LTD FREEFALL
CSA Z259.15 CLASS AD
OSHA 1910.140/1926.502
EN795 2 – Type A
EN795 – Type E
TS 16415

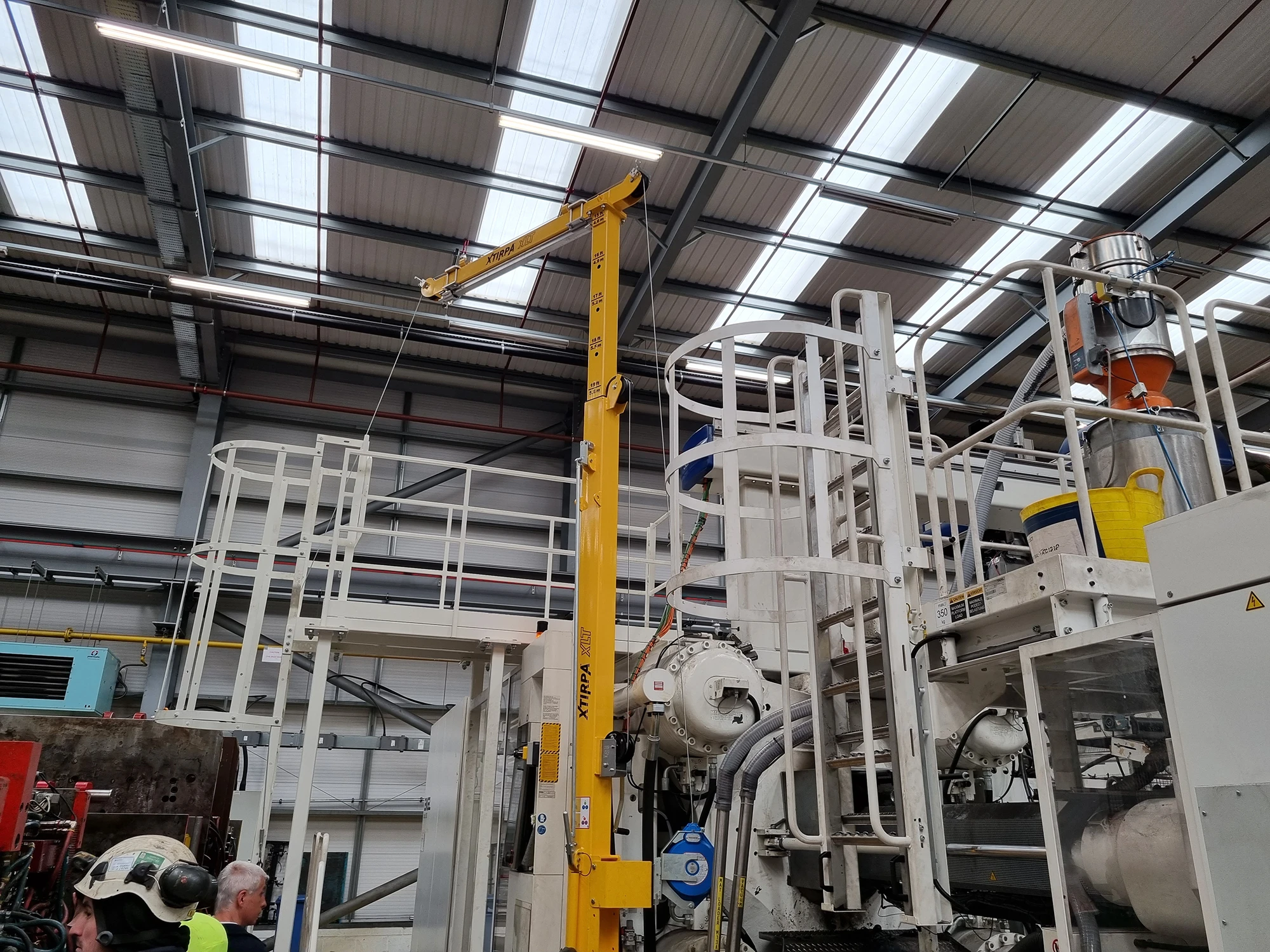

IN-8022 Adjustable XLT Mast / Davit System for PPE
Designed for confined space access, fall arrest, and rescue applications.
164 kg (360 lb) per user
Adjustable-height mast and davit system with rotating adapter base.
Operating Angle: 360°
Maximum Number of Users: 2 simultaneous
Equipment Maximum Arrest Force (MAF): 8 kN / user
• Structure: 6061-T6 aluminum davit arms and masts
• Adapters: Stainless steel 304 / 316 or galvanized steel 44 W / 50 W
• Pulleys: Acetal
• Manufacturing Location: Innova Public Utility Products Inc., Granby, QC, Canada
• Adjustable height from 4.57 m (15 ft) to 7.62 m (25 ft)
• Configured through telescopic mast sections
• Davit Arm Model: IN-5054 (length ≈ 2.74 m / 9 ft)
• Maximum Working Moment (IN-5040): 2.9 kN·m (25,920 lbf·in)
• Maximum Braking Moment (IN-5040): 32.7 kN·m (289,728 lbf·in)
• Must be installed by a qualified person following manufacturer instructions.
• Compatible with EN 360 SRLs, EN 1496 rescue devices, and EN 354 lanyards.
• Telescopic mast enables precise height adjustment for different entry points.
• Full 360° rotation through lubricated adapter interface.
