DAVIT ARM
XLT
SYSTEM
XLTthe ONLY FALL PROTECTION system WITH AN INTEGRATED RESCUE PLAN
The XLT system is a mobile, fall protection, safety solution for work at heights applications.
The davit arm is available in two different horizontal length 2206 mm / 87″ IN-5039 and 3135 mm / 123″ IN-5054.
To be set up on a flat surface it gives your crew an efficient and secure fall protection anchoring point to perform all kind of working activities.

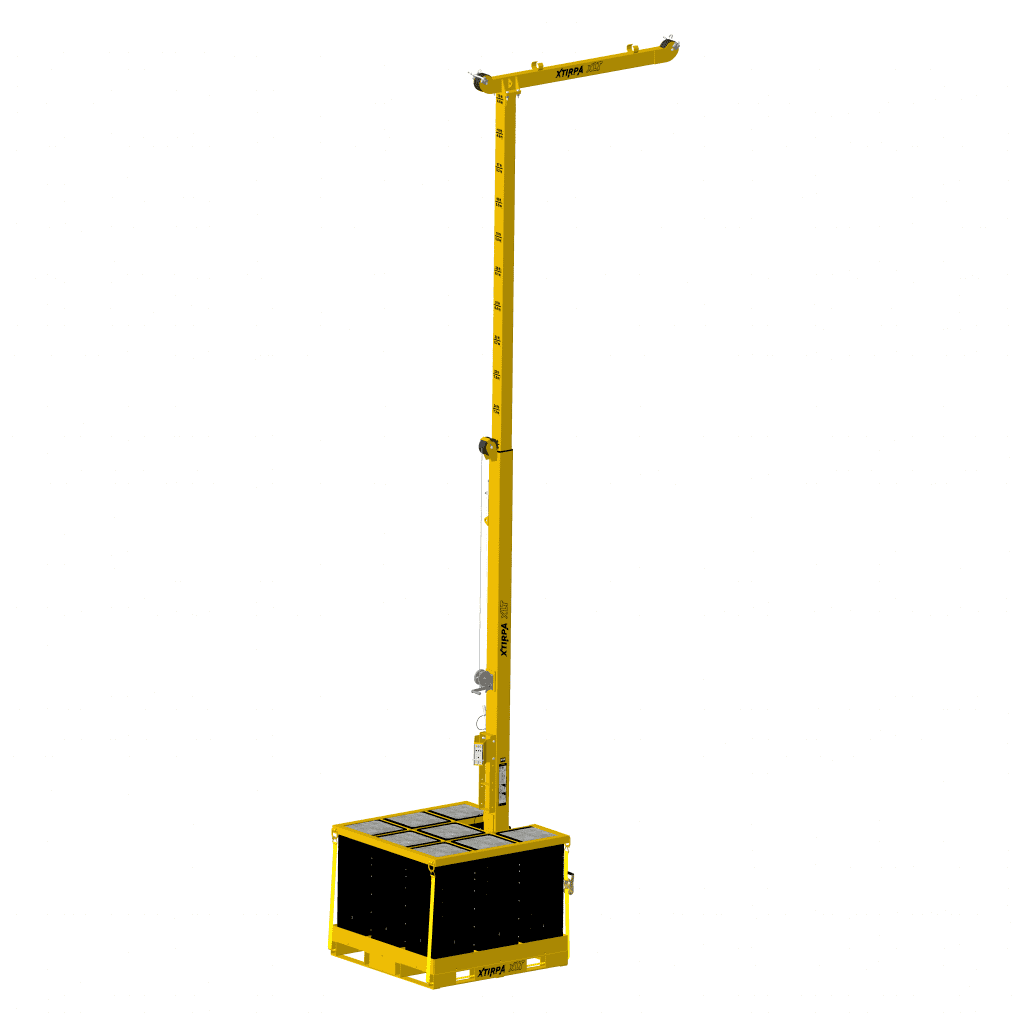

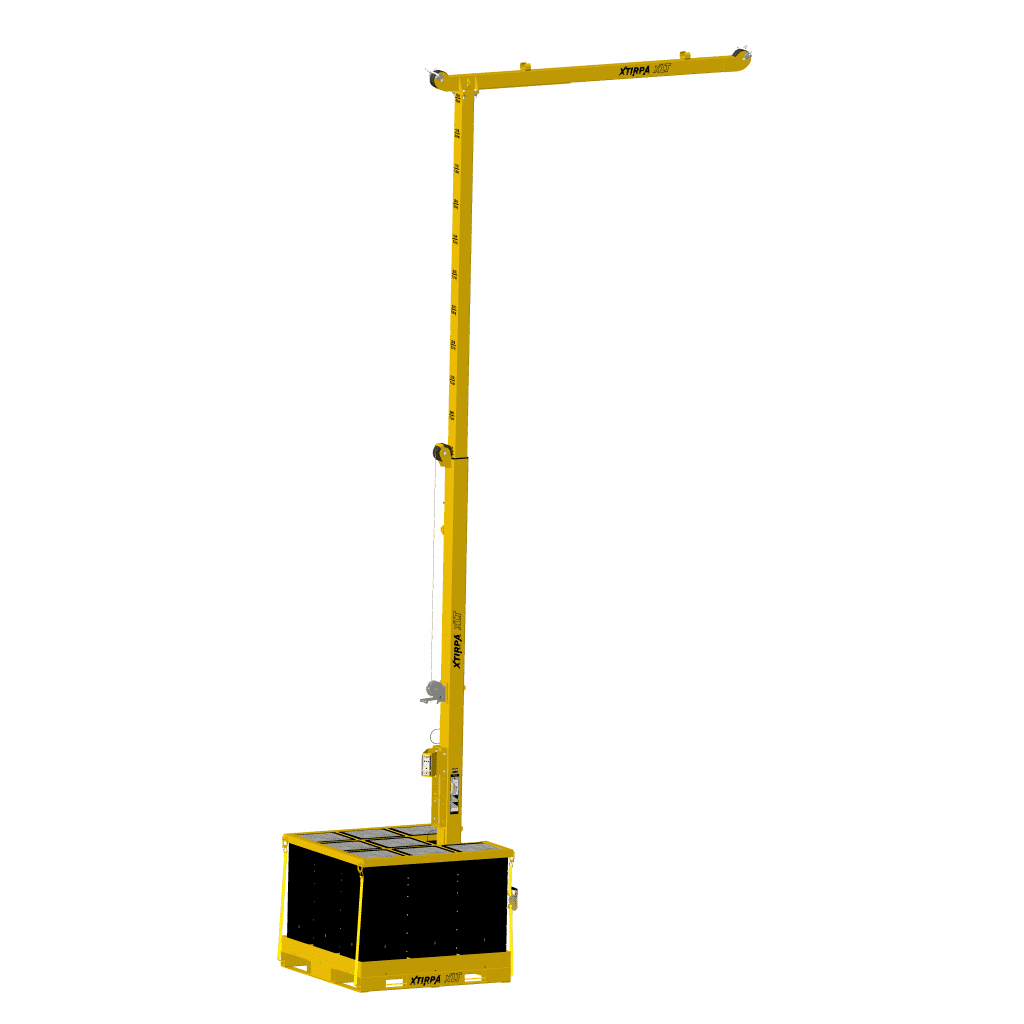

An easy assembly allows, with its extendible mast (15′ to 25′ / 4572 to 7620 mm), to reach heights up to 25′ / 7.6 meters.
It provides the necessary safety conditions wherever it is located in a matter of minutes.
Its usage flexibility makes of it an ideal solution for temporary or permanent working sites.
The optional counterweight system consists of eight concrete blocks, transported with a fork-lift to the desired location.
Each block can be easily removed and stored thanks to the integrated hook.
DESIGNED FOR MULTIPLE APPLICATIONS
SAFETY SYSTEMS FOR WORKS AT HEIGHT
INFO OR QUOTE?
Fill the form below right now!
AT XTIRPA, WE KNOW YOUR APPLICATIONS
The XLT mast is fitted with a rail that accommodates a SRL (Self Retracting lifeline) allowing the operator to move freely along its length.
The mast hight is adjustable in one foot / 30cm increments with the height adjustment crank.
Equipped with two adapters, the XLT allows for the installation of an optional SRL (Self Retracting Lifeline) and / or winch.
The presence of this second SRL and/or winch allows to recover an operator in case of a fall by securing him to it and lowering or lifting him to a safe area below or above.
A floor base is also available if a permanent installation is preferred.
The XLT operates in fall-arrest and recovery mode and has a 360° working radius.
XLT MAST
Request a free on-line Demo!
Take a free on-line demo and discover all the features of this excellent confined space arm system!
What are you waiting for? Get in touch with our sales team right now!
REQUEST A DEMOIN-5039
IN-5054
system technical parts
The XLT mast-david arm system has greater versatility than any other elevated tie-off platform on the market. The XLT exceeds all safety standards and is designed with solid steel for unequaled reliability.
The set is composed by:
- Xlt Mast davit arm available in 2 horizontal extensions;
- Heigh adjustment crank;
- Adapter for self-retracting lifeline bracket;
- Central floor adapter (optional)
- Horizontal rail with trolley for self-retracting lifeline (optional);
- Adapter for winch bracket (optional);
- Set of 8 concrete blocks (optional);
- Transportable base (optional).

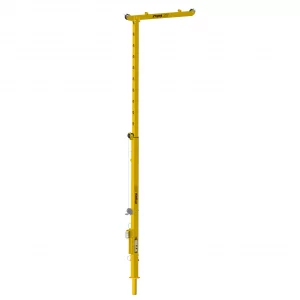

IN-5039
Xlt mast davit arm
15 ‘to 25′ (4572 mm to 7620 mm) adjustable mast and davit arm, 6’ (1829 mm) reach, horizontal rail, trolley for self-retracting lifeline, locking mechanism in working position, heigh adjustment crank, self-retracting lifeline adapter and adapter for optional winch.
MATERIAL
Steel
dimensions:
L 87′ (2206 mm) x W 16′ (394 mm) x H 187′-304′ (4762-7727 mm)
Weight:
630 lb (286 kg)

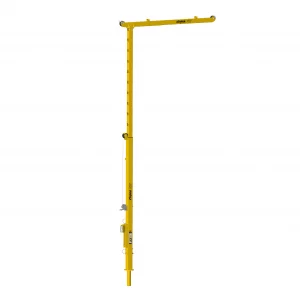

IN-5054
Xlt mast davit arm
15 ‘to 25’ (4572 mm to 7620 mm) adjustable mast / davit arm, 9’ (2743 mm) reach, locking mechanism in working position, height adjustment crank, self-retracting lifeline adapter and adapter for optional winch.
MATERIAL
Steel
dimensions:
L 123” (3135 mm) x W 15.4” (392 mm) x H 187”-304” (4762-7727 mm)
Weight:
636.5 lb (288.7 kg)
IN-5040
CENTRAL FLOOR Adapter
Central floor base allows the user have a multitude of working angles. To be used with the XLT mast / davit arm IN-5039. Anchor bolts included.
*Allowable working angle.
MATERIAL
AISI 304 stainless steel
dimensions:
L 17” (432 mm) x W 17” (432 mm) x H 18” (467 mm)
Weight:
134 lb (61 kg)
A5039-12

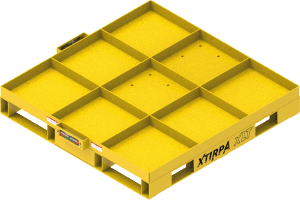

TRANSPORT BASE
Trasport base for the installation of the central floor adapter IN-5040 and 8 concrete blocks A5039-16.
MATERIAL
Steel
dimensions:
L 57′ (1448 mm) x W 57′ (1448 mm) x H 10.5′ (267 mm)
weight:
538 lb (244 kg)
A5039-46
structure for weight trasportation
The structure is placed on the concrete blocks A5039-16 to maximize stability of the concrete blocks.
MATERIAL
Steel
dimensions:
L 57” (1448 mm) x W 57” (1448 mm) x H 2.5” (63.5 mm)
weight:
90 lb (41 kg)
A5039-40 / A5054-04
HORIZONTAL RAIL
To be installed on the XLT arm IN-5039 or IN-5054 for having a second sliding anchor point.
Part Length
A5039-40 72” (1828 mm)
A5054-04 108” (2743 mm)
MATERIAL
Aluminium
A5039-59
concrete block
MATERIAL
Concrete 35MPa
dimensions:
L 17.25” (438 mm) x W 17.25” (438 mm) x H 39.5” (1003 mm)
Weight:
936 lb (424.5 kg)
A5039-58
To be installed on the transport base A5039-12 o create the necessary counterweights for the XLT system.
Set of 8 concrete blocks available A5039-58.
A5039-48
concrete mold for Xlt system
MATERIAL
polyethylene
dimensions:
L 17.25” (438 mm) x W 17.25” (438 mm) x H 39.5” (1003 mm)
weight:
30 lb (13.6 kg)
A5039-57
Mold used to pour concrete to create the necessary
counterweights for the XLT system.
To be installed on the transport base A5039-12.
Set of 8 moulds available A5039-57.
